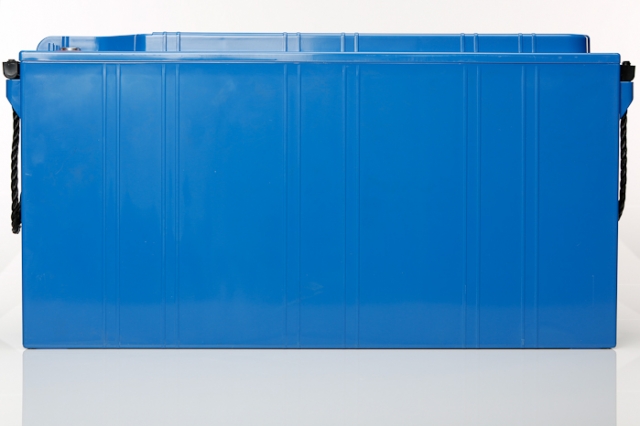

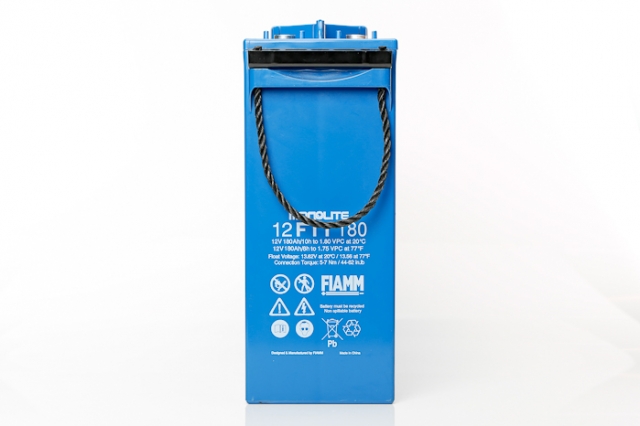

FIAMM 12FIT180

Product Code: FIAMM 12FIT180

FIAMM

Product Features

  • Nominal Voltage: 12 Volt
  • Nominal Capacity (20hr rate): 200 Ah
  • Terminal: M8
  • Length : 126 mm
  • Width : 558 mm
Show More
Please enquire
Product Description

FIAMM FIT range of valve regulated batteries has been designed for high reliability and safety front terminal telecom installations.

Fit battery range has front terminal design ideal for installation on cabinet 19” and 23” ; it allows easy access for maintenance reducing the installation footprint and maximising the energy density. Fit uses proven VRLA technology with 99% internal recombination efficiency, is non-spillable and maintenance free therefore requires no topping up of electrolyte during its float-life. Fit range is compliant with the highest recognised international standards, non-hazardous for air/sea/rail/road transportation and is 100% recyclable. Fit has a self-discharge rate less than 2% per month, guaranteeing long shelf-life.

SPECIFICATIONS

Special lead calcium tin alloy grid, designed to resist corrosion and provide short recharge time

VRLA AGM technology using low resistance high microporous fiberglass separators

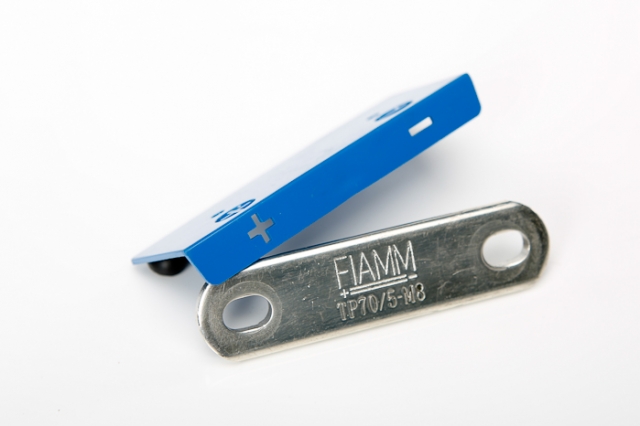

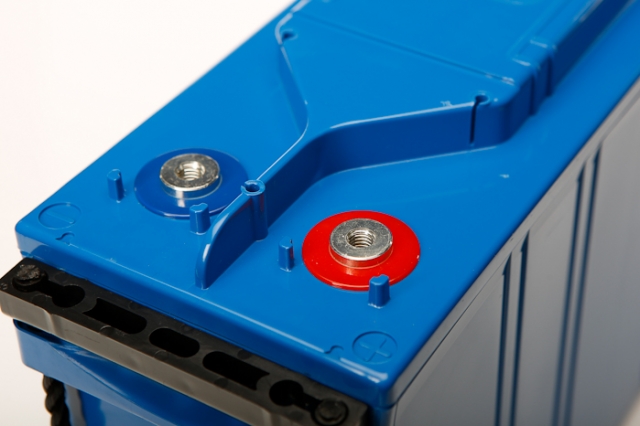

Leak resistant post seal, threaded female M6/M8 terminals with high conductivity and maximum torque resistance

One-way safety relief valves allow gas to escape and prevent the ingress of oxygen and flame arrestors prevent sparks or flames entering the battery

Flame retardant ABS plastic to IEC 707 FV0 and UL94 FV0 (LOI greater than 28%)

Installation in any orientation (excluding permanently inverted)

TECHNOLOGY

FIAMM FIT range use agm (absorbed glass mat) technology.

The electrole is absorbed in fiber glass separators with 99% internal gas recombination efficiency.

Blocs are guaranteed non - spillable and maintenance free therefore reequires no topping up of electrolyte during its whole life.

Low self-discharge allows 6 months shelf life.

Product Specification
Nominal Voltage 12 Volt
Nominal Capacity (20hr rate) 200 Ah
Terminal M8
Length 126 mm
Width 558 mm
Total Height 321 mm
Weight 57 kg
Downloadable Media
