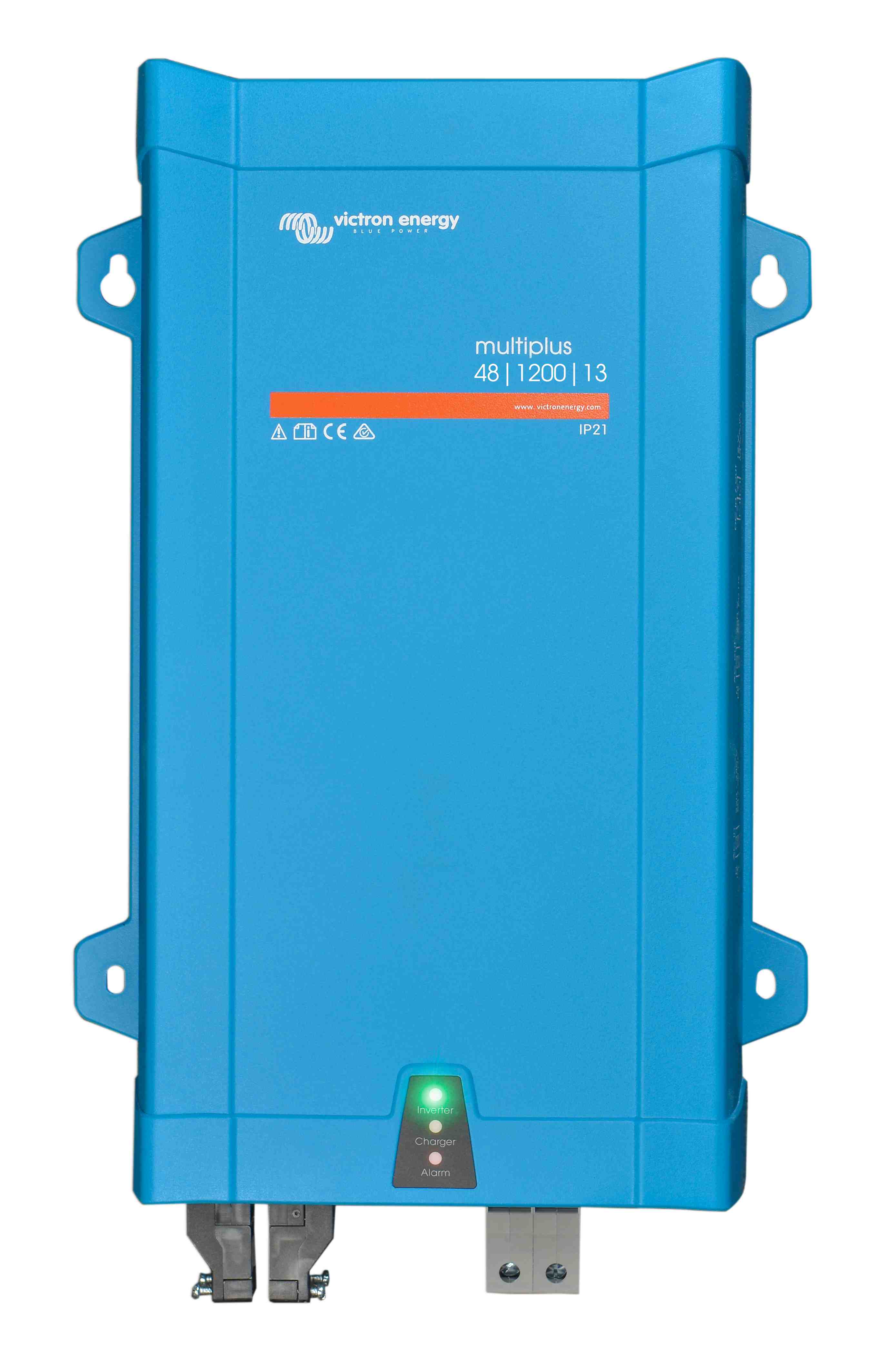

Victron Multiplus 48/1200/13 Inverter/Charger

Product Code: Victron Multiplus 48/1200/13 Inverter/Charger

Brand: Victron Energy

Product Features

  • Continuous power at 25°C: 1200VA
  • Peak power: 2400W
  • Charge Current House Battery: 13A
  • Battery Temperature Sensor: Yes
  • Battery - Connection: 10mm²
Show More
Please enquire
Product Description

Victron MultiPlus 1200VA Inverter/Charger

The Victron MultiPlus range feature a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

Proven Reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power
Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.

Search Mode
When Search Mode is ?on?, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.

Programmable relay
By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).

Remote on / off / charger on
Remote operation can be implemented by connecting a switch to the three pole connector.

Product Specification
Continuous power at 25°C 1200VA
Peak power 2400W
Charge Current House Battery 13A
Battery Temperature Sensor Yes
Battery - Connection 10mm²
Power Control Yes
Transfer Switch 16A
Dimensions (mm) H x W x D 406 x 250 x 100
Weight 8.2 kg, 8.2 kg
Show More
