BLUE SMART IP65 12/7

Product Code: BLUE SMART IP65 12/7

Brand: Victron Energy

Product Features

  • Nominal Voltage: 12 Volt
  • Charging Voltage: 14.4 V
  • Charging Current: 7A
  • Charger Type: 7 stage, fully automatic
  • Battery Type: 12V Lead Acid (WET, MF, AGM, Calcium/Calcium & GEL, Li-ion)
Show More
Please enquire
Product Description

Victron IP65 Charger 12/7

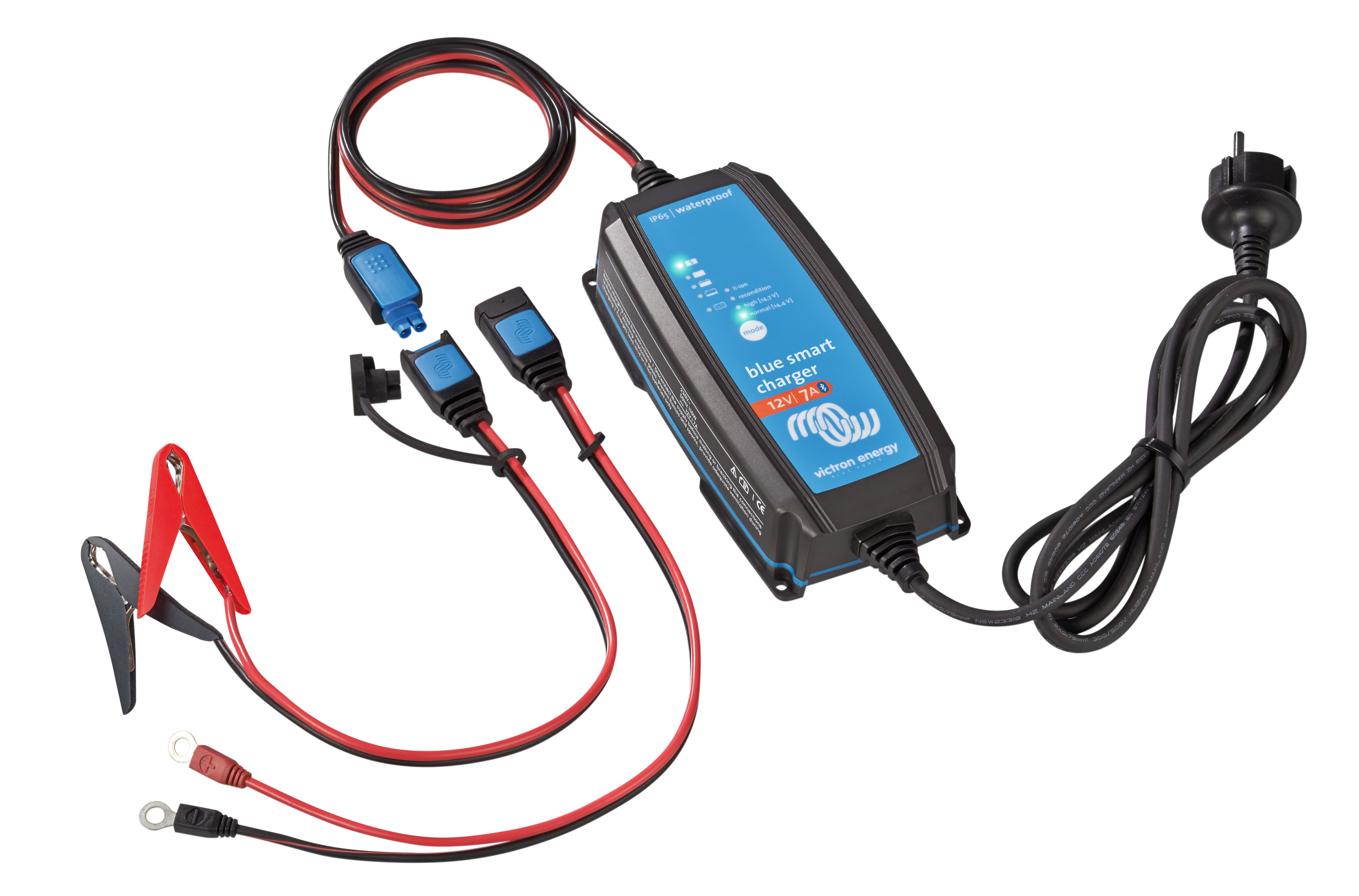

12V 7A Blue Power IP65 Battery Charger with DC connector

Victron IP65 12-7 Charger is the Ultra high efficiency green battery charger:
With up to 95% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.

Storage mode:
less corrosion of the positive plates Even the lower float charge voltage that follows the absorption period will cause grid corrosion. It is therefore essential to reduce the charge voltage even further when the battery remains connected to the charger during more than 48 hours.

Temperature compensated charging:
The optimal charge voltage of a lead-acid battery varies inversely with temperature. The Blue Power IP65 Charger measures ambient temperature during the test phase and compensates for temperature during the charge process. The temperature is measured again when the charger is in low current mode during float or storage. Special settings for a cold or hot environment are therefore not needed.

Li-ion battery mode:
The Blue Power Charger uses a specific charging algorithm for Li-ion (LiFePO?) batteries, with automatic Li-ion under voltage protection reset.

Recovery function for fully discharged batteries:
Most reverse polarity protected chargers will not recognize, and therefore not recharge a battery which has been discharged to zero or nearly zero Volts. The Blue Power Charger however will attempt to recharge a fully discharged battery with low current and resume normal charging once sufficient voltage has developed across the battery terminals.

Functions:

  • Water, dust and chemical resistant
  • Seven step smart charge algorithm
  • Recovery of fully discharged ?dead? batteries
  • Automatic power supply function
  • Automatic compensation for high or low temperature
  • Several other battery life enhancing features
  • Low power mode to charge smaller batteries
  • Li-ion battery mode



Product Specification
Nominal Voltage 12 Volt
Charging Voltage 14.4 V
Charging Current 7A
Charger Type 7 stage, fully automatic
Battery Type 12V Lead Acid (WET, MF, AGM, Calcium/Calcium & GEL, Li-ion)
Insulation IP65
Dimensions 47 x 95 x 190mm (H x W x D)
Weight 0.9 kg
