Victron Phoenix 24/1200 VE.Direct

Product Code: Victron Phoenix 24/1200 VE.Direct

Brand: Victron Energy

Product Features

  • Continuous power at 25°C: 1200VA
  • Peak power: 2200W
  • Output AC Voltage: 230VAC or 120VAC +/- 3%
  • Input voltage range (V AC): 18.4V - 34.0V
  • Maximum efficiency: 91%
Show More
Please enquire
Product Description

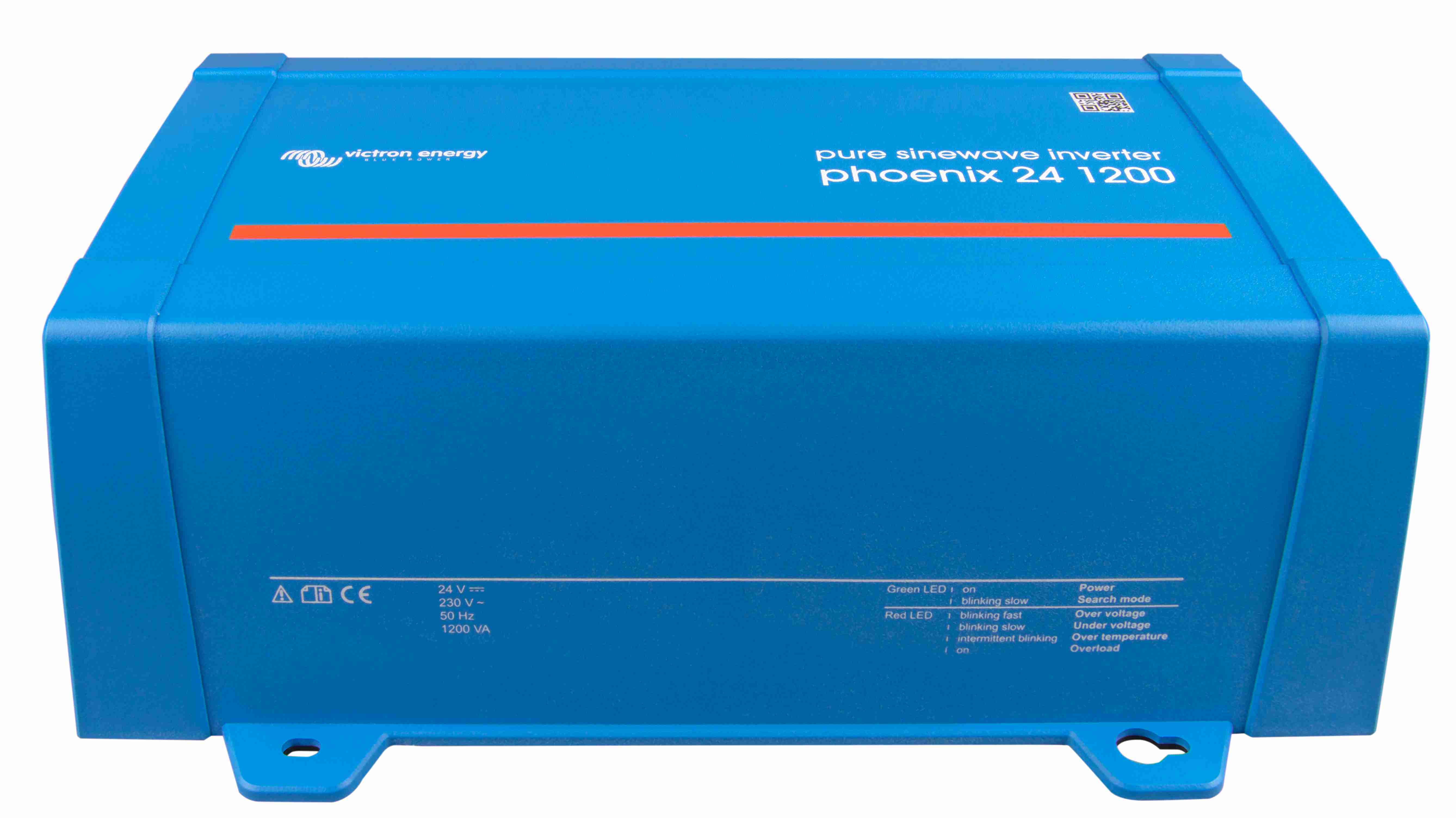

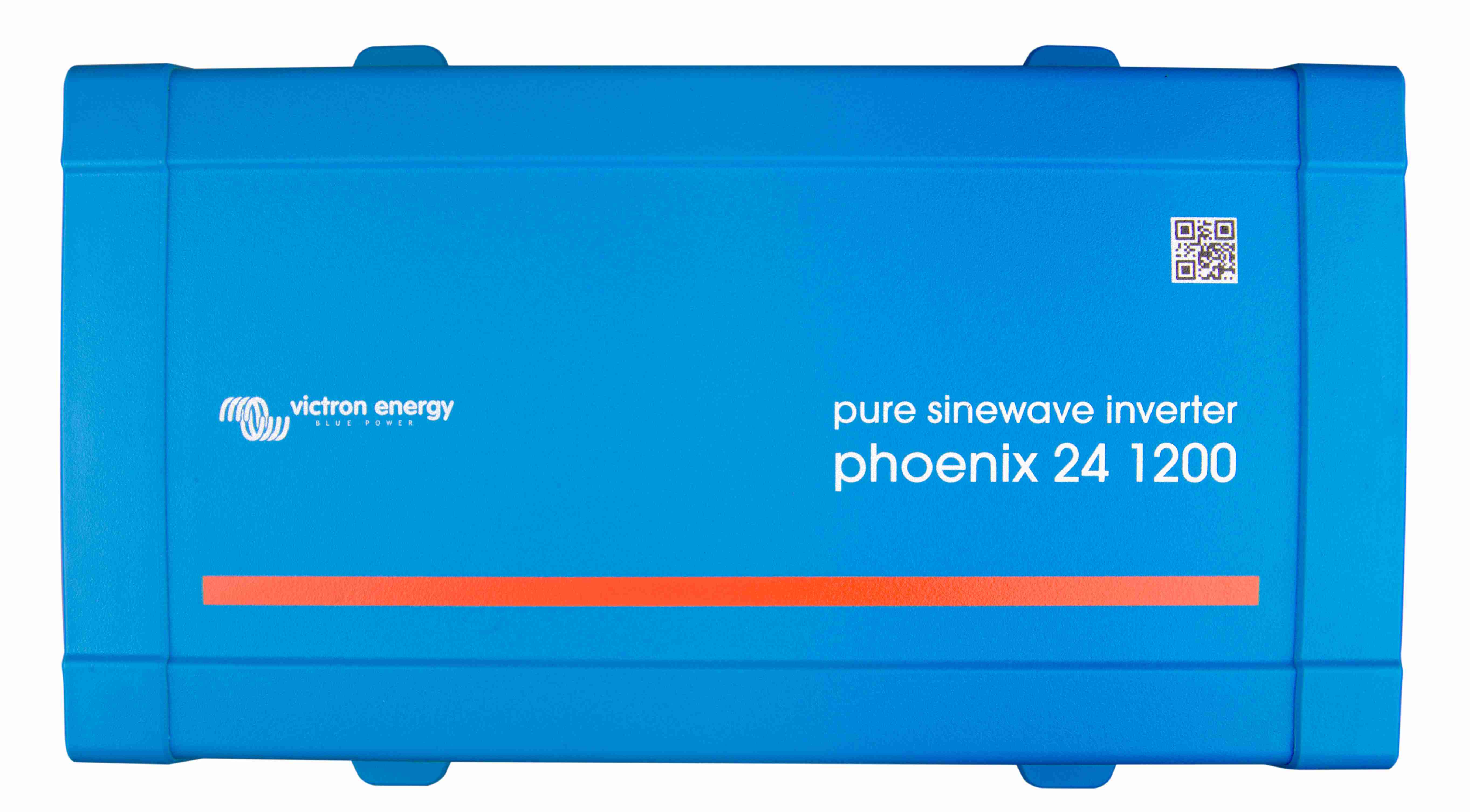

Victron Phoenix Inverter

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is atop quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Using an inverter allows you to power normal 230Vac domestic appliances such as PCs, TVs, microwaves and power tools.
Using a True Sinewave and HF technology, the Phoenix is compact and lightweight.
The Phoenix range, with SinusMax technology, can provide a short burst of power to start tricky loads such as a refrigerator or electric motor. The inverters can also be paralleled for very large loads.

Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

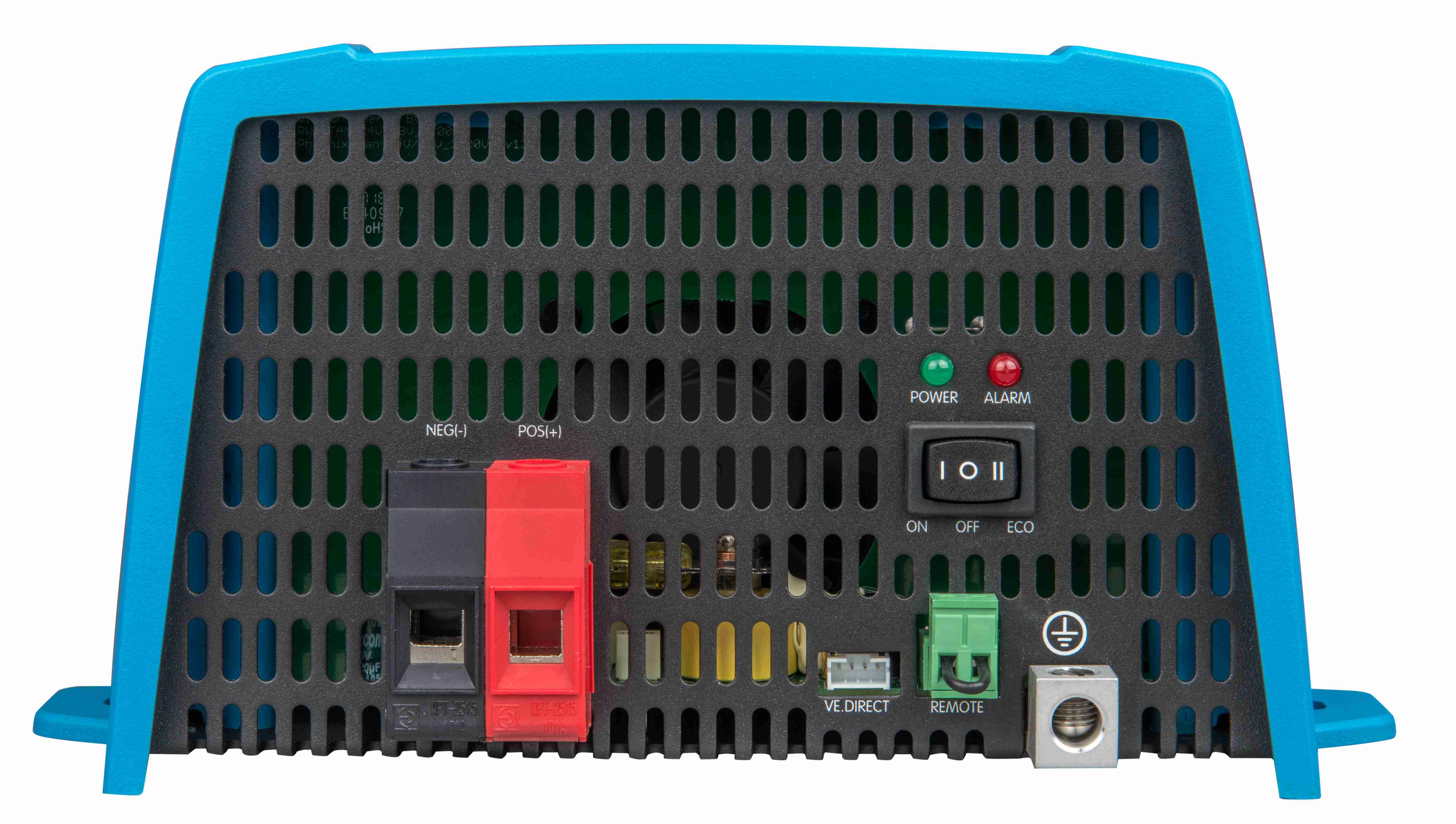

Remote on/off
A remote on/off switch can be connected to a two pole connector, or between battery plus and the
left hand contact of the two pole connector.

VE.Direct communication port

The VE.Direct port can be connected to:

  • A computer (VE.Direct to USB interface cable needed)
  • Apple and Android smartphones, tablets, macbooks and other devices (VE.Direct Bluetooth
    Smart dongle needed)

Fully configurable:

  • Low battery voltage alarm trip and reset levels
  • Low battery voltage cut-off and restart levels
  • Output voltage 210 – 245V
  • Frequency 50 Hz or 60 Hz
  • ECO mode on/off and ECO mode sense level

Monitoring:

  • In- and output voltage and current alarms
Product Specification
Continuous power at 25°C 1200VA
Peak power 2200W
Output AC Voltage 230VAC or 120VAC +/- 3%
Input voltage range (V AC) 18.4V - 34.0V
Maximum efficiency 91%
Operating temperature range -40°C to +65°C
Remote on - off switch Yes
Dimensions (mm) H x W x D 117 x 232 x 327
Weight 7.4kg
