Battery Monitor BMV-700

Product Code: Battery Monitor BMV-700

Victron Energy

Product Features

  • Dimensions (mm) H x W x D: 63 x 63 x 30
  • Supply voltage range: 6,5 - 95 VDC
  • Battery capacity: 1-9999 Ah
  • Current draw, back light off: < 4mA
  • Temperature measurement range: -20°C +50°C
Show More
Please enquire
Product Description

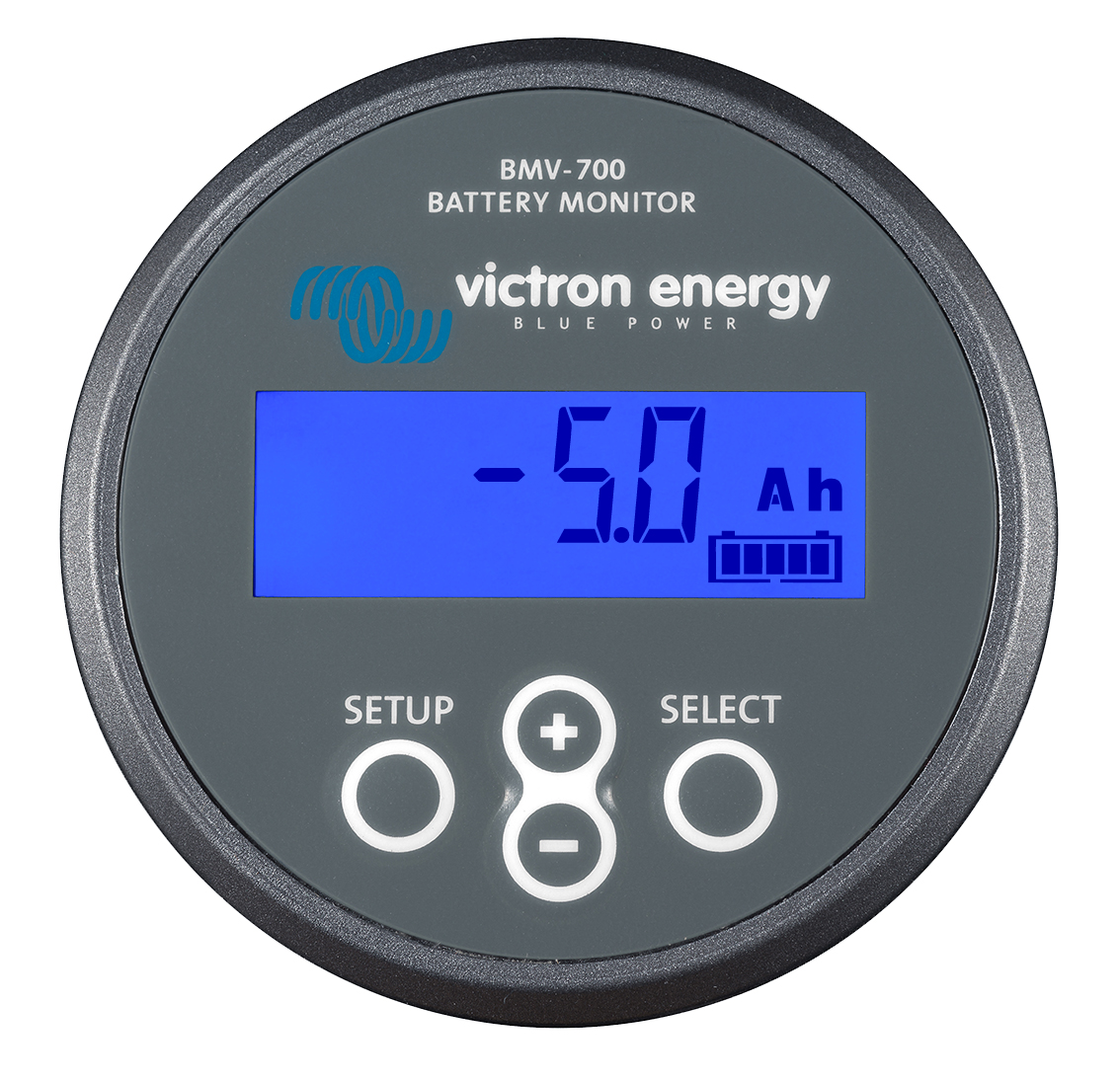

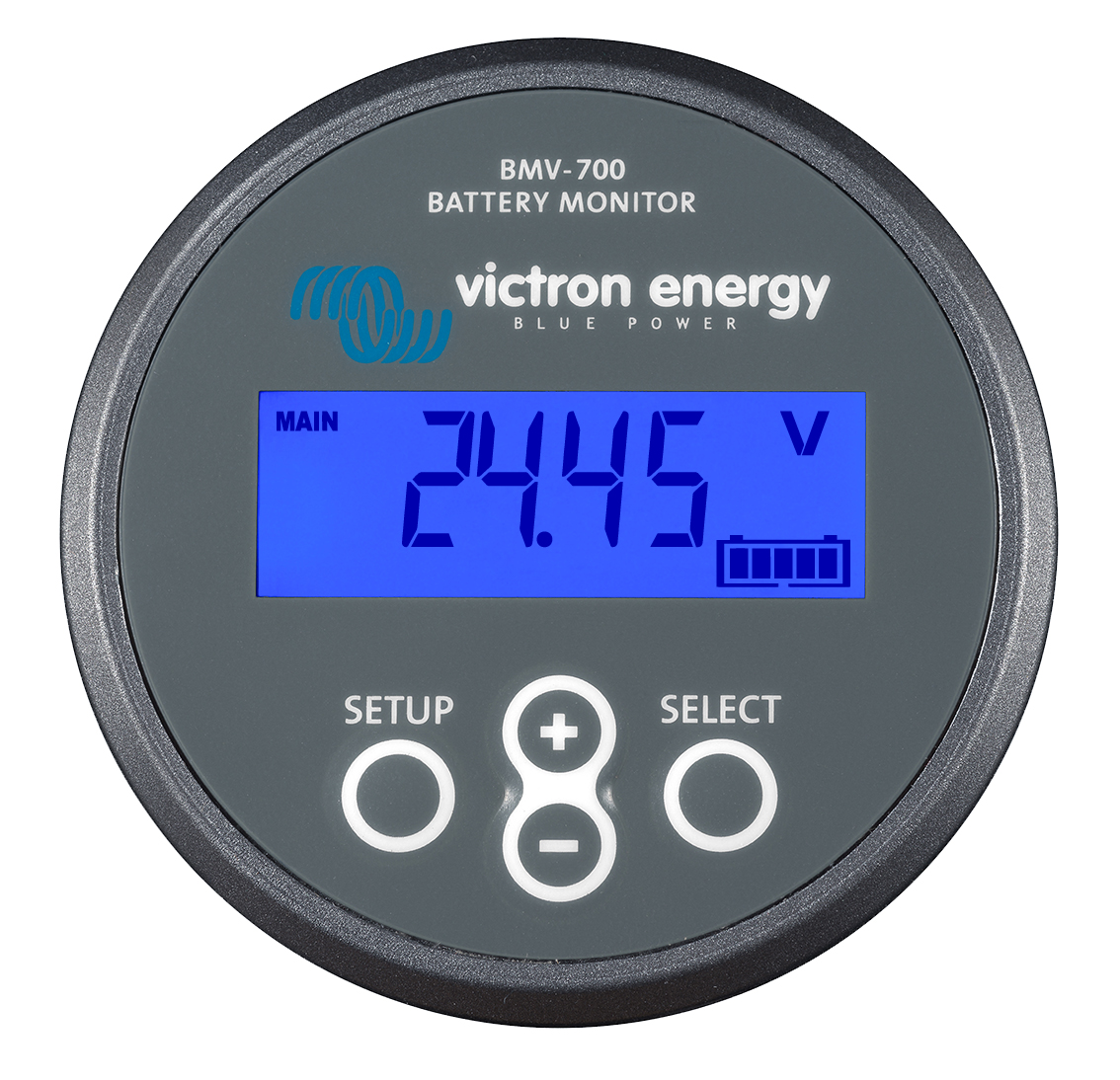

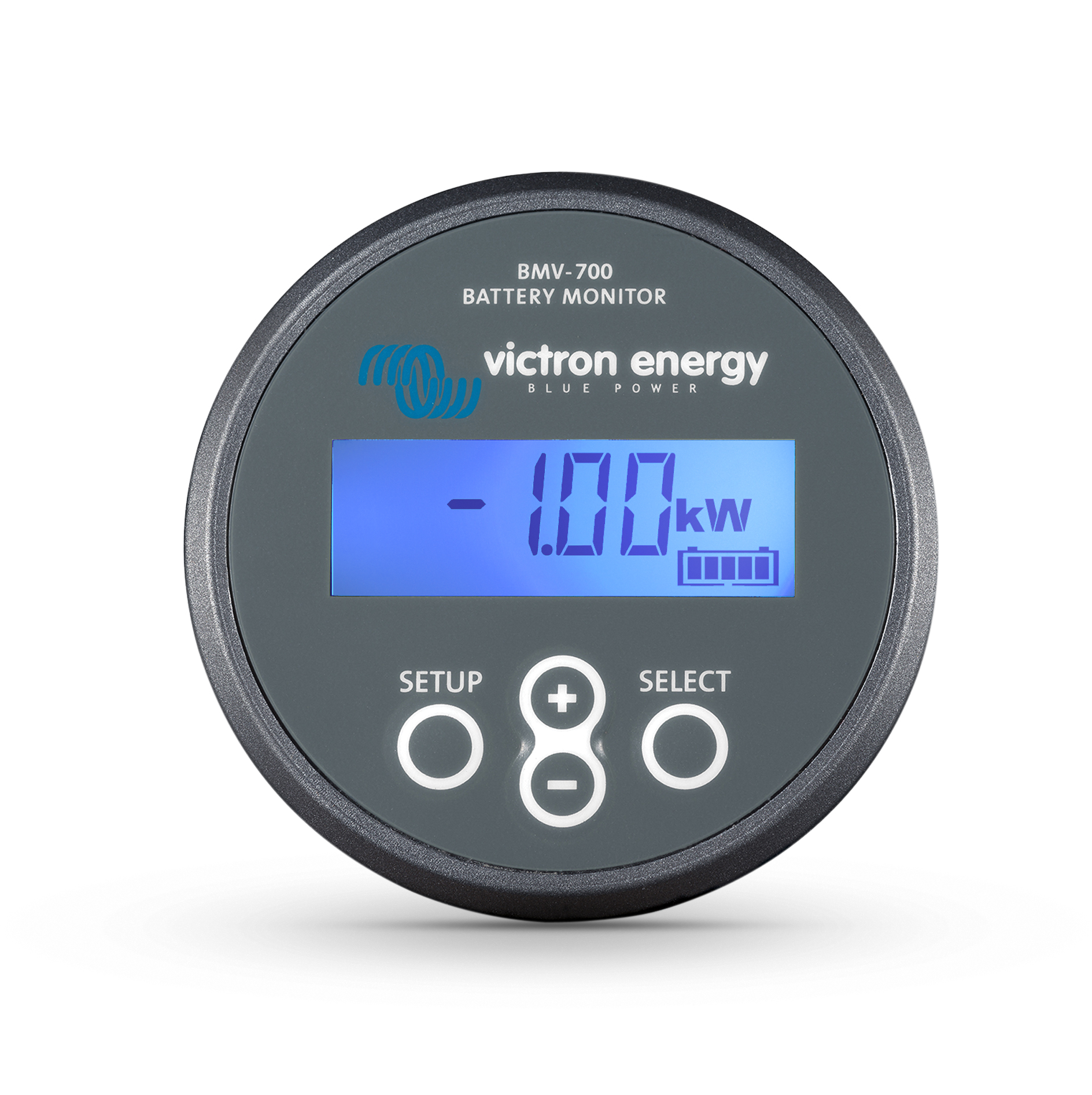

The BMV-700 is Victron's new high precision multi-function battery monitor with a host of useful features. It essentially acts as a battery 'fuel gauge' for anyone needing to keep a check on the performance of their battery or battery bank. The information displayed by the BMV-700 includes voltage, current draw, Ah consumed, % charge level, 'time-to-go' and it features a programmable alarm and in-built relay to trigger external equipment under an alarm condition.

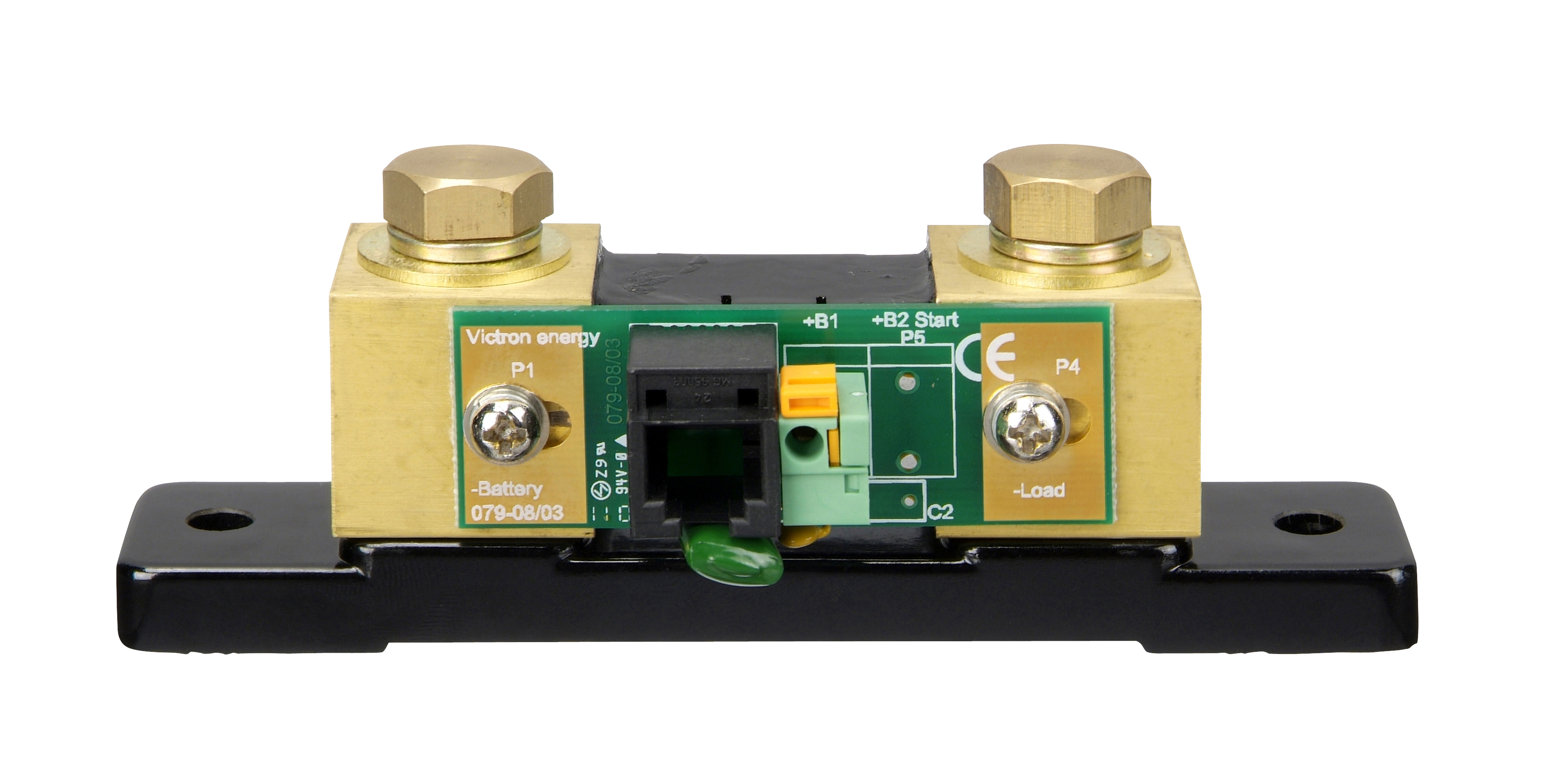

The shunt is fitted in-line with the battery's negative cable and the on-board PCB is powered by a fused positive supply. Once the battery monitor is panel-mounted in a suitable location (with or without the supplied square bezel) it is connected to the shunt's PCB using a single RJ12 data/power cable and programmed using the on-board menu.

Can be used with the Victron VE.Direct to Bluetooth Smart Dongle

Box contents

  • BMV-700
  • 500A/50mV shunt with on-board PCB
  • RJ12 cable - 10m long
  • Fused power cable - 2m long
  • Optional square bezel
  • Fixings
  • Instruction manual

Features

  • Displays: Voltage / Current / Power / Ah Consumed / State of Charge (%) / Time-to-go / Total kWh charged/discharged
  • Auto re-calibration each time the battery is fully charged (to ensure accuracy is maintained)
  • Auto-detection of nominal system voltage
  • Programmable visual and audible alarm
  • Programmable relay that can be energised/de-energised in an alarm condition
  • Can be configured for use with other shunts
  • Suitable for a single battery or a bank of batteries.
  • Low current consumption
  • Backlight for display
  • Quick-install menu and detailed setup menu
  • V.E Direct communication port for integration with other Victron equipment
  • Suitable for use with 12V or 24V systems
  • 5-year manufacturer's warranty
Product Specification
Dimensions (mm) H x W x D 63 x 63 x 30
Supply voltage range 6,5 - 95 VDC
Battery capacity 1-9999 Ah
Current draw, back light off < 4mA
Temperature measurement range -20°C +50°C
Relay 60V / 1A normally open (function can be inverted)
VE.Direct communication port Yes
