BatteryProtect BP-220

Product Code: BatteryProtect BP-220

Victron Energy

Product Features

  • Max continuos load current: 220 A
  • Peak current (during 30 seconds): 600 A
  • Operating voltage range: 6-35V
  • Default thresholds: Disengage: 10.5V or 21V Engage: 12V or 24V
  • IP rating: Electronics: IP67 (potted) Connections: IP00
Show More
Please enquire
Product Description

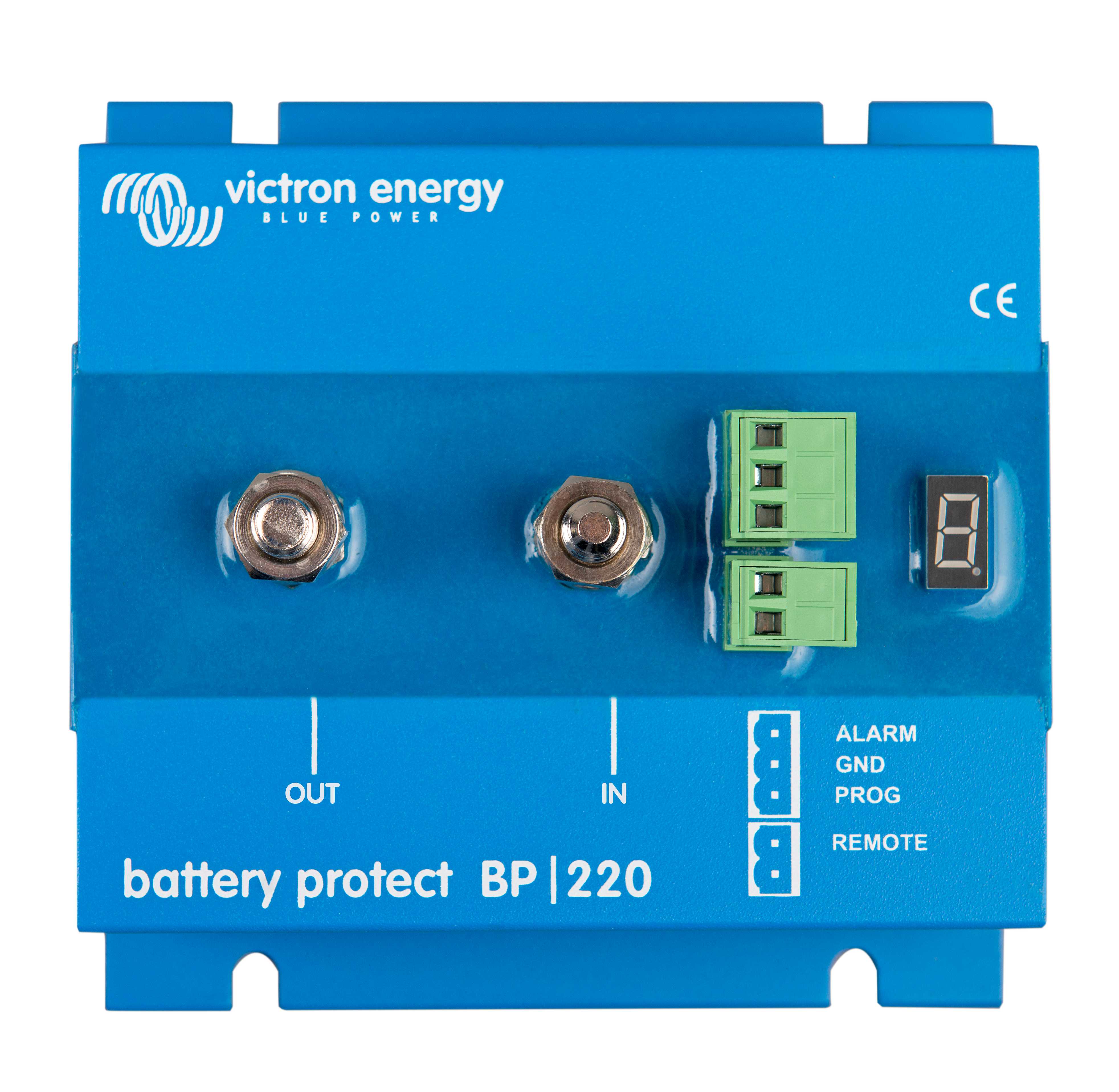

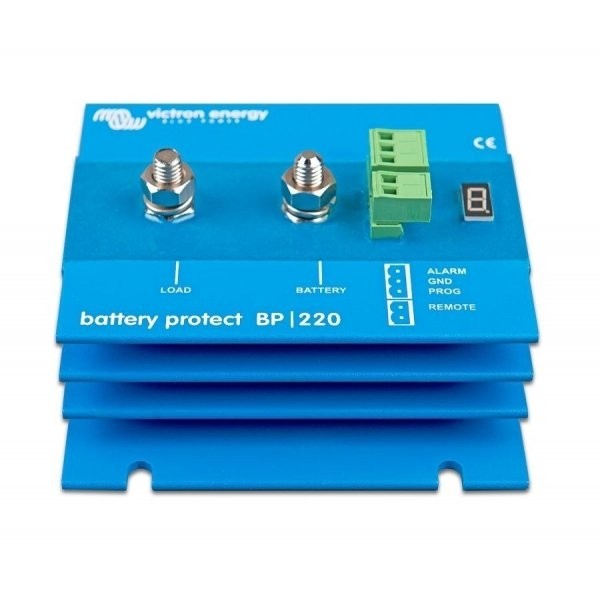

Victron BatteryProtect BP-220
With 7-segment LED display: easy to set up

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
The BatteryProtect is not designed for reverse currents from charging sources.

12/24V auto ranging
The BatteryProtect automatically detects system voltage

Programming made easy
The BatteryProtect can be set to engage / disengage at several different voltages. The seven segment display will indicate which setting has been chosen.

A special setting for Li-ion batteries
In this mode the BatteryProtect can be controlled by the VE.Bus BMS.
Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. See connection diagram in the manual.

Ultra low current consumption
This is important in case of Li-ion batteries, especially after low voltage shutdown.Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information.

Over voltage protection
To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16V respectively 32V.

Ignition proof
No relays but MOSFET switches, and therefore no sparks.

More information:



    Product Specification
    Max continuos load current 220 A
    Peak current (during 30 seconds) 600 A
    Operating voltage range 6-35V
    Default thresholds Disengage: 10.5V or 21V Engage: 12V or 24V
    IP rating Electronics: IP67 (potted) Connections: IP00
    Dimensions (mm) H x W x D 62 x 123 x 120
    Weight 0.8 kg
