Battery Monitor BMV-702 Black

Product Code: Battery Monitor BMV-702 Black

Victron Energy

Product Features

  • Dimensions (mm) H x W x D: 63 x 63 x 30
  • Supply voltage range: 6,5 - 95 VDC
  • Battery capacity: 1-9999 Ah
  • Current draw, back light off: < 4mA
  • Temperature measurement range: -20°C +50°C
Show More
Please enquire
Product Description

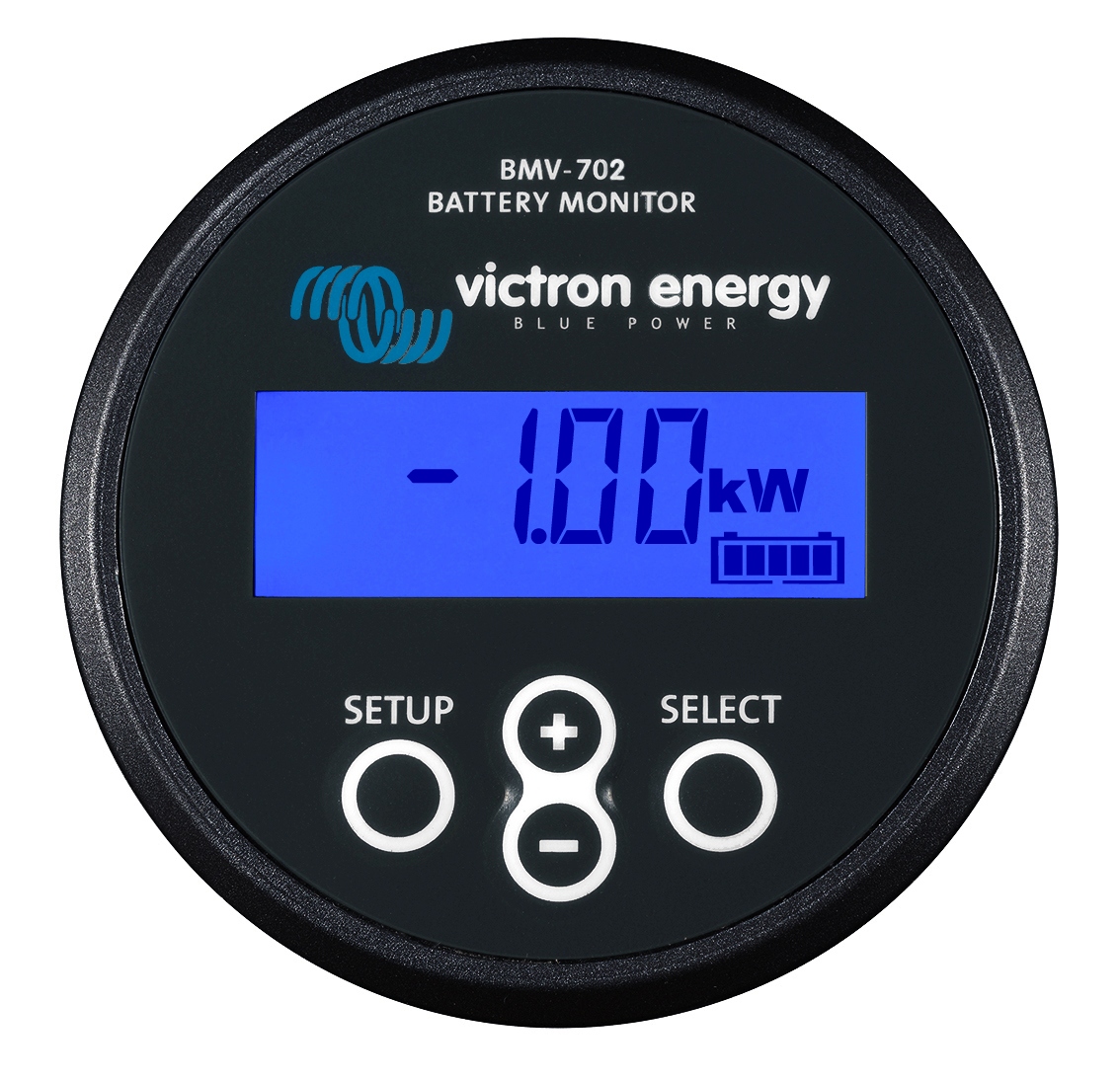

Victron Battery Monitor BMV-702 Black

The BMV-702 Black is a high precision battery monitor.
The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery.
Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.

Victron battery monitor BMV-702 Black features:
- Battery voltage, current, power, ampere-hours consumed and state of charge
- Remaining time at the current rate of discharge
- Programmable visual and audible alarm
- Programmable relay, to turn off non critical loads or to run a generator when needed
- 500 Amp quick connect shunt and connection kit
- Shunt selection capability up to 10.000 Amps
- VE.Direct communication port
- Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
- Wide input voltage range: 6,5 – 95V
- High current measurement resolution: 10 mA (0,01A)
- Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
- Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.

Easy to program(with your smartphone!)
A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.
Alternatively, choose the fast and easy solution: download the smartphone app (Bluetooth Smart dongle needed)

Midpoint voltagemonitoring
This feature, which is often used in industry to monitor large and expensive battery banks, is now for the first time made available at a low cost, to monitor any battery bank.





      Product Specification
      Dimensions (mm) H x W x D 63 x 63 x 30
      Supply voltage range 6,5 - 95 VDC
      Battery capacity 1-9999 Ah
      Current draw, back light off < 4mA
      Temperature measurement range -20°C +50°C
      Relay 60V / 1A normally open (function can be inverted)
      VE.Direct communication port Yes
