Smart BatteryProtect BP-65

Product Code: Smart BatteryProtect BP-65

Victron Energy

Product Features

  • Max continuos load current: 65 A
  • Peak current (during 30 seconds): 250 A
  • Operating voltage range: 6-35V
  • Default thresholds: Disengage: 10.5V or 21V Engage: 12V or 24V
  • IP rating: Electronics: IP67 (potted) Connections: IP00
Show More
-
Product Description

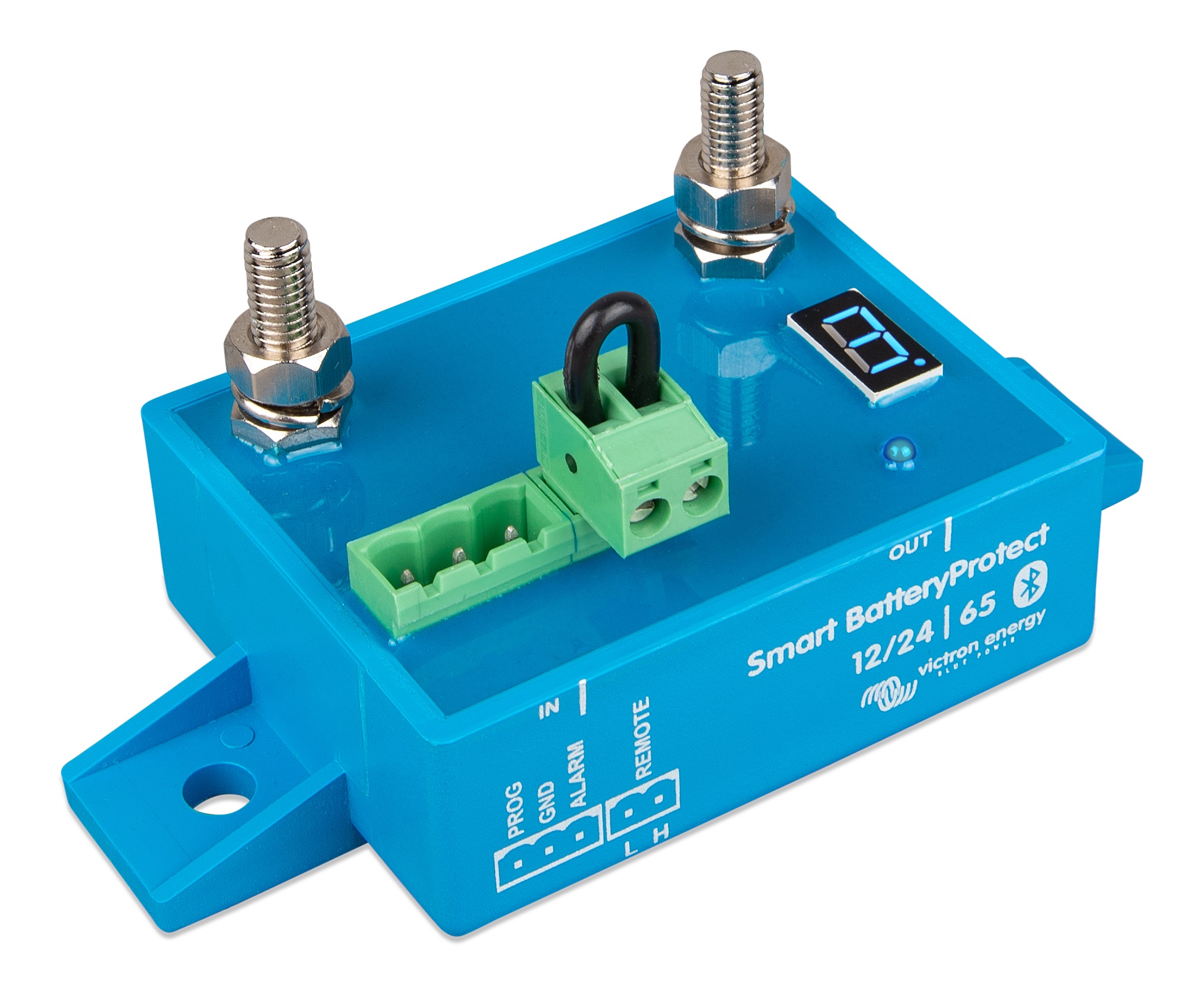

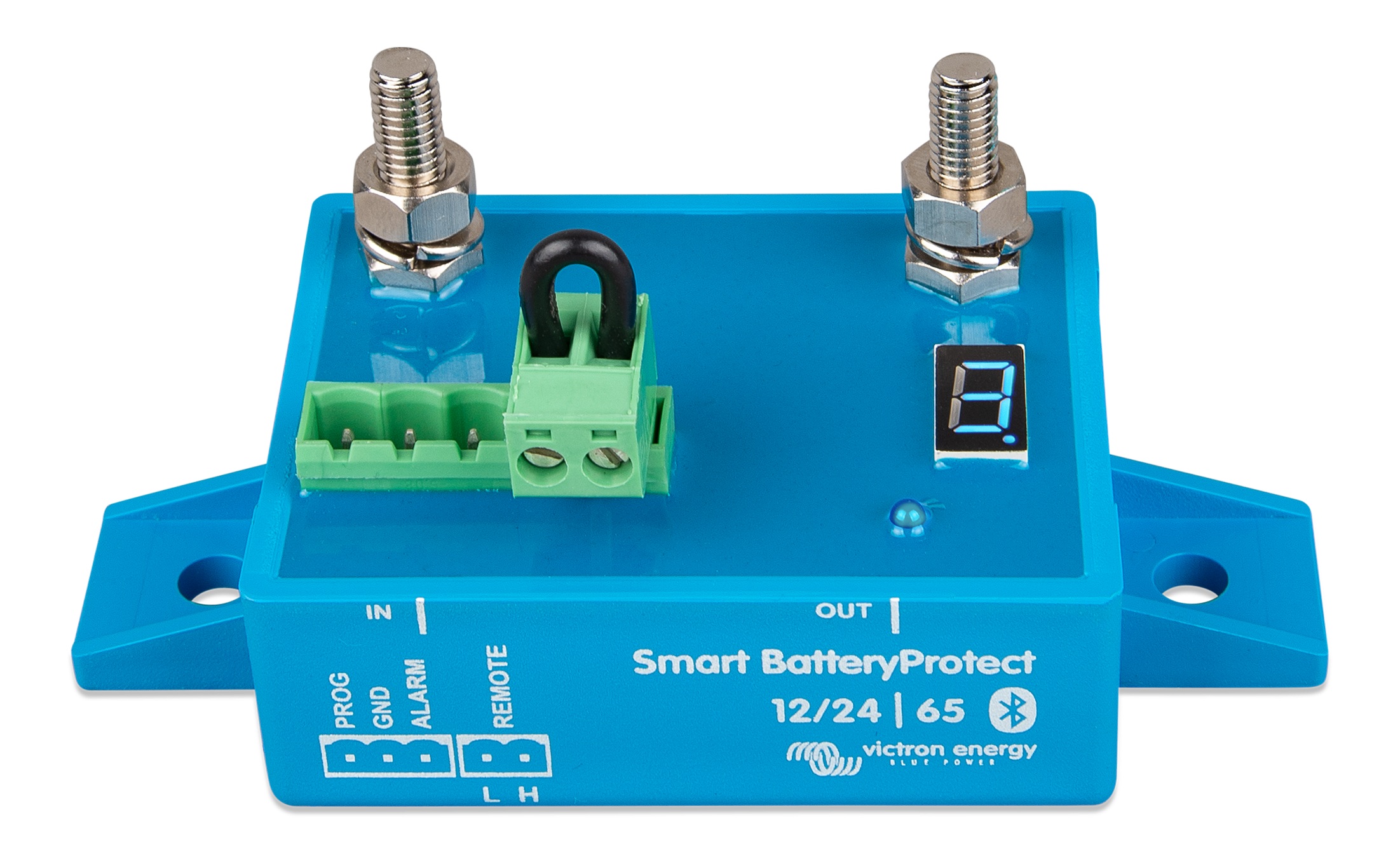

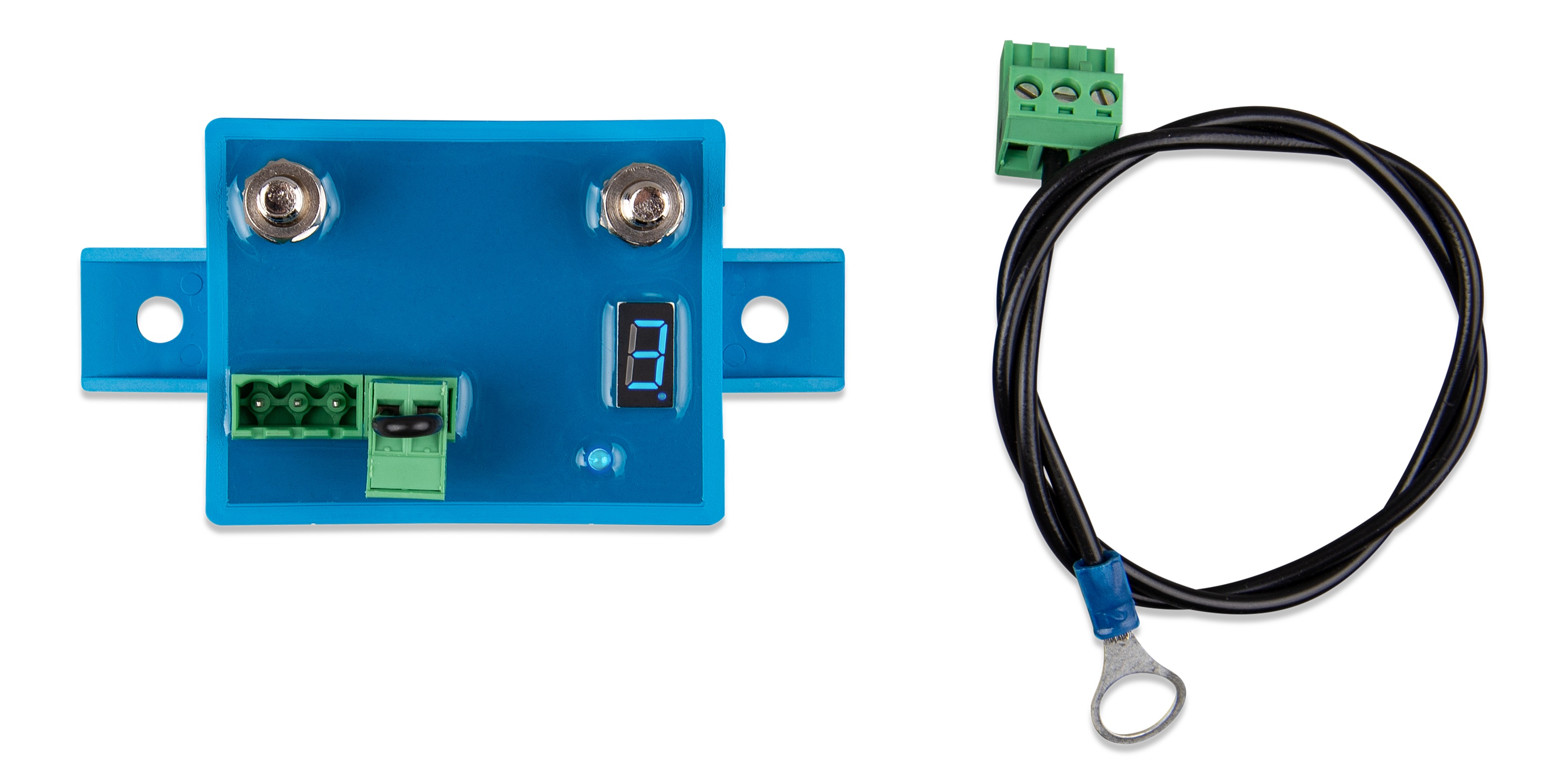

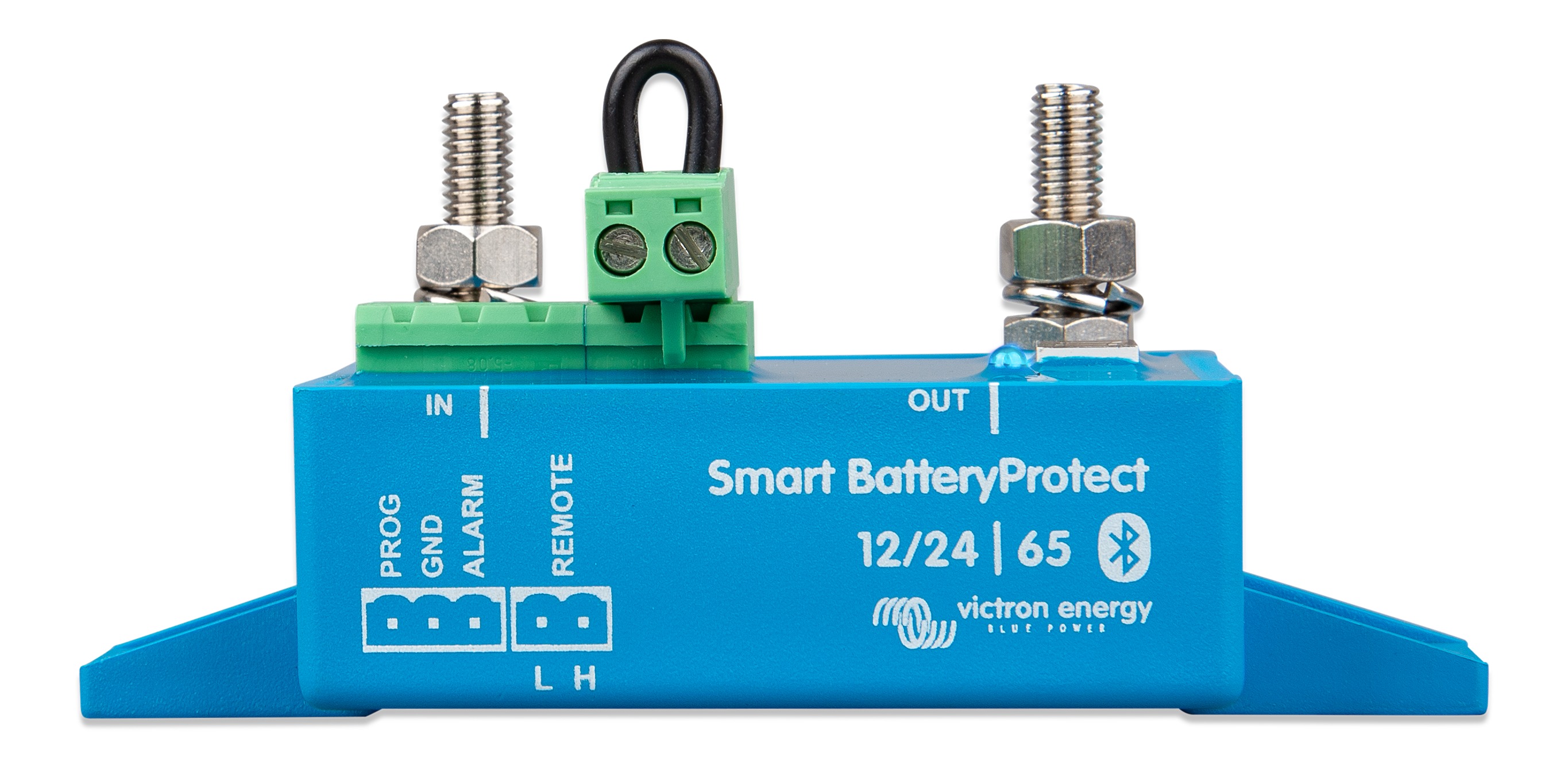

Victron Smart BatteryProtect 12/24V-65A
Bluetooth enabled. System on-off switch

Protects the battery against excessive discharge and can be used as a system on/off switch
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
The on/off input can be used as a system on/off switch.

12/24V auto ranging
The Smart BatteryProtect automatically detects system voltage one time only.

Bluetooth: programming made easy
When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.
Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).If required, Bluetooth can be disabled.

A special setting for Li-ion batteries
In this mode the BatteryProtect can be controlled by the VE.Bus BMS.
Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. See connection diagram in the manual.

Ultra-lowcurrent consumption
This is important in case of Li-ion batteries, especially after low voltage shutdown.Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information.

Over voltage protection
To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16.3V respectively 32.6V.

Ignition proof
No relays but MOSFET switches, and therefore no sparks.

    Product Specification
    Max continuos load current 65 A
    Peak current (during 30 seconds) 250 A
    Operating voltage range 6-35V
    Default thresholds Disengage: 10.5V or 21V Engage: 12V or 24V
    IP rating Electronics: IP67 (potted) Connections: IP00
    Dimensions (mm) H x W x D 40 x 48 x 106
    Weight 0.2 kg
