BlueSolar PWM-LCD&USB 48V

Product Code: BlueSolar PWM-LCD&USB 48V

Victron Energy

Product Features

  • Battery Voltage: 48V
  • Charging Current: 10A, 20A, 30A
  • Second Battery Output: No
  • Self Consumption: 10mA
  • Operating temperature range: -35°C +60°C
Show More

Charge Current House Battery

Please enquire
Product Description

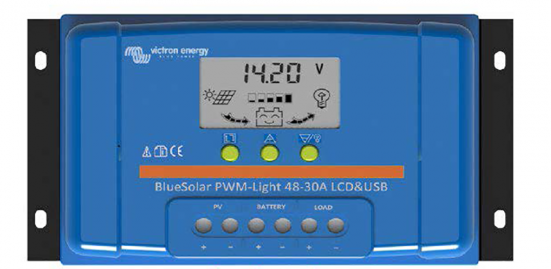

Victron charge controler - BlueSolar PWM-LCD&USB 48V

Features
- Three stage battery charging [bulk – absorption – float]
- Battery type: Lead-acid and LiFePO4 (with internal BMS)
- Protected against over current.
- Protected against short circuit.
- Protected against reverse polarity connection of the solar panels and/or battery.
- Low voltage load disconnect.
- Temperature protection

Liquid crystal display
For status monitoring and set-up

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.

Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A

    Product Specification
    Battery Voltage 48V
    Charging Current 10A, 20A, 30A
    Second Battery Output No
    Self Consumption 10mA
    Operating temperature range -35°C +60°C
