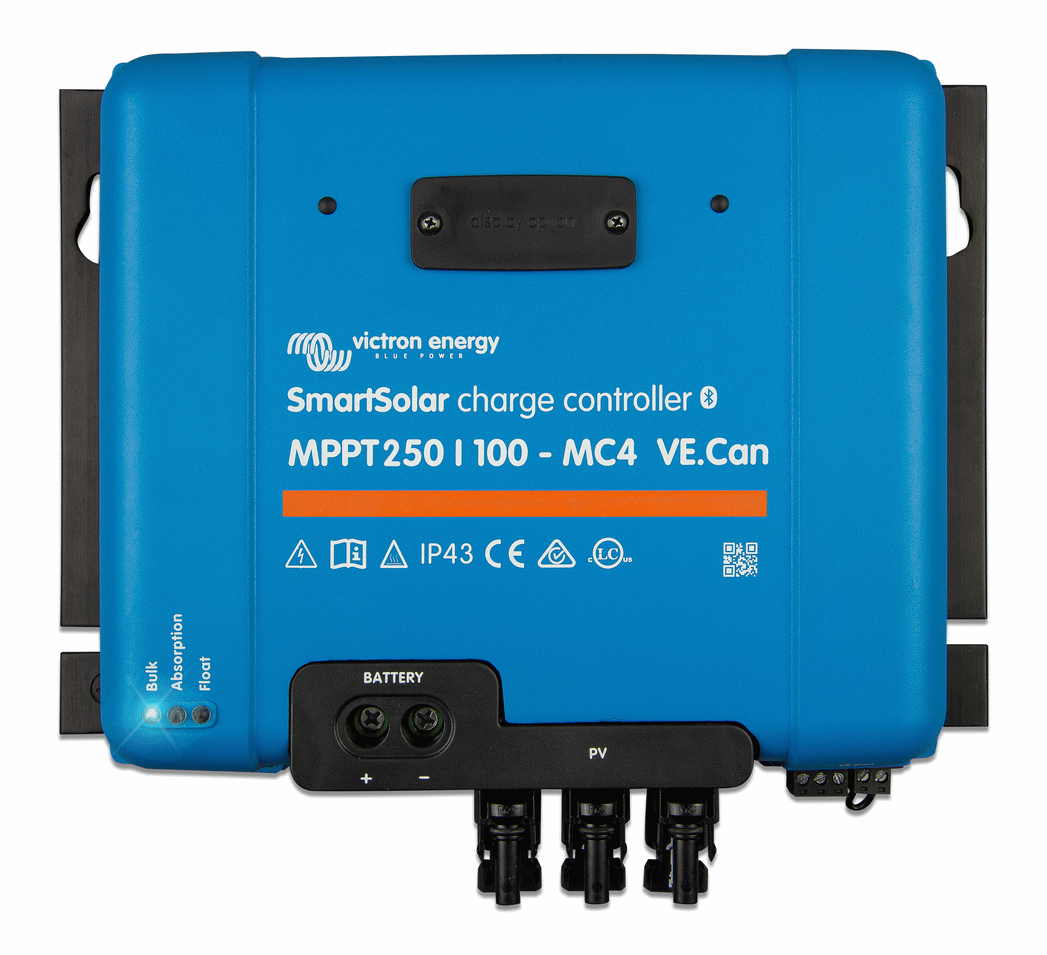

SmartSolar MPPT 250/100 - MC4 VE.Can

Product Code: SmartSolar MPPT 250/100 - MC4 VE.Can

Victron Energy

Product Features

  • Battery Voltage: 12/24/48 Auto Select
  • Maximum PV open circuit voltage: 250V
  • Rated charge current: 100 A
  • Nominal PV Power 12V: 1450 W
  • Nominal PV Power 24V: 2900 W
Show More
Please enquire
Product Description

Victron SmartSolar MPPT Solar Charge Controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.



    Product Specification
    Battery Voltage 12/24/48 Auto Select
    Maximum PV open circuit voltage 250V
    Rated charge current 100 A
    Nominal PV Power 12V 1450 W
    Nominal PV Power 24V 2900 W
    Nominal PV Power 48V 5800 W
    IP rating IP43 (electronic components), IP22 (connection area)
    Connection terminals MC4
    Peak efficiency 99%
    Dimensions (mm) H x W x D 246 x 295 x 103 mm
    Weight 4.5 kg
