Rolls Series 5000 4CS17P

Product Code: Rolls Series 5000 4CS17P

Brand: Rolls

Product Features

  • Nominal Voltage: 4 Volt
  • Nominal Capacity (20hr rate): 568 Ah
  • Length : 365 mm
  • Width : 210 mm
  • Total Height : 464 mm
Show More
Please enquire
Product Description

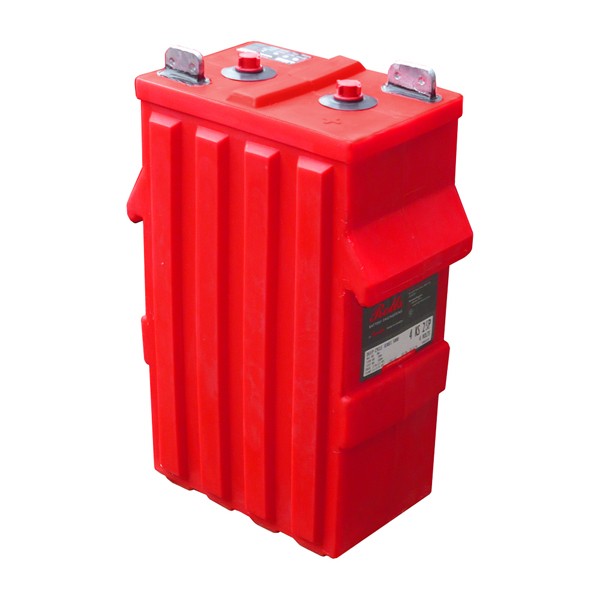

Rolls Series 5000 4CS17P
4V 568Ah Flooded Deep Cycle Battery

Rolls have been manufacturing batteries for over 60 years and have built a reputation on the reliability, durability and easy maintenance of its product. The Rolls Series 5000 4CS17P has a dual container construction and a high-density polyethylene material maximizing durability and eliminating acid leaks even if the outer container ruptures. The unique “resistox” plate design offers more resistance to corrosion and maximizes the life of the battery. The life expectancy of Rolls 5000 batteries are amongst the longest in the industry.

Rolls 5000 series batteries incorporate a new plate design with a larger surface area and higher density paste, providing increased performance for high current applications. Powerful and dependable, these models provide power for a wide range of renewable systems.


  • Water-Miser Fitted As Standard
  • Dual Container Construction
  • Thick Plate Design
  • Highest Density Active Material
  • Envelope Separators
  • Increase Liquid Reserve
  • Eliminate Stray Current
  • No Acid Leakage

Product Specification
Nominal Voltage 4 Volt
Nominal Capacity (20hr rate) 568 Ah
Length 365 mm
Width 210 mm
Total Height 464 mm
Weight 58.0 kg
